IC NOVALITHIC 1/2 BRIDGE TO220-7

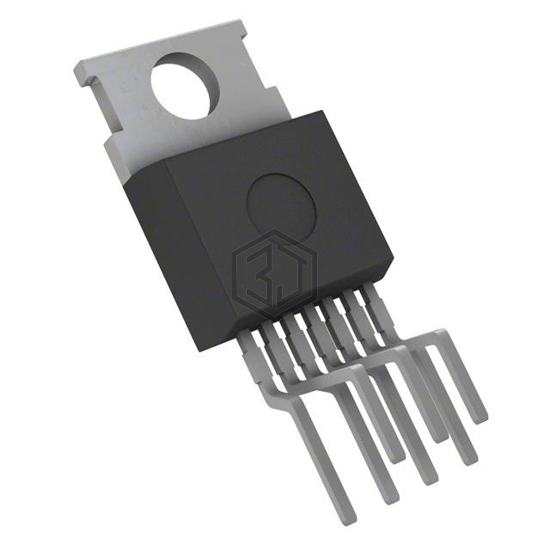

BTS7960P is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC NOVALITHIC 1/2 BRIDGE TO220-7. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5.5V ~ 27.5V, package / case TO-220-7 Formed Leads.
In Stock: 3,114
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | DMOS |
| Rds On (Typ) | 9mOhm LS, 7mOhm HS |
| Current - Output / Channel | 40A |
| Current - Peak Output | 60A |
| Voltage - Supply | 5.5V ~ 27.5V |
| Voltage - Load | 5.5V ~ 27.5V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Latch Function, Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Through Hole |
| Package / Case | TO-220-7 Formed Leads |
| Supplier Device Package | P-TO220-7 |
Submit your RFQ for BTS7960P and get a quote within 24 hours.
