IC MOTOR DRIVER 600V 23SOP

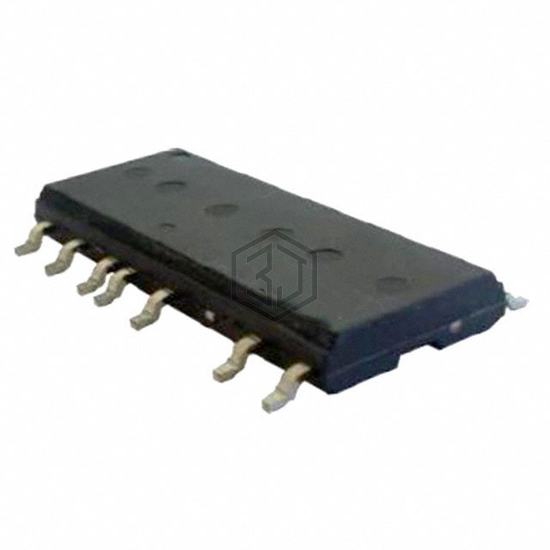

IRSM515-044PA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 600V 23SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 32-PowerSMD Module, 23 Leads.
In Stock: 120
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 800mOhm |
| Current - Output / Channel | 3A |
| Current - Peak Output | 15A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 200V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 32-PowerSMD Module, 23 Leads |
| Supplier Device Package | 23-SOP |
IRSM515-044PA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRSM515-084PA | Infineon Technologies | IC MOTOR DRIVER 600V 23SOP | 87% | View |
| IRSM505-065PATR | Infineon Technologies | IC MOTOR DRIVER 500V 23SOP | 86% | View |
| IRSM505-065PA | Infineon Technologies | IC MOTOR DRIVER 500V 23SOP | 86% | View |
| IRSM515-065PA | Infineon Technologies | IC HALF BRIDGE DRIVER 2.6A 23SOP | 86% | View |
| DRV8312DDW | Texas Instruments | IC BRIDGE DRIVER PAR 44HTSSOP | 75% | View |
| DRV8312DDWR | Texas Instruments | IC BRIDGE DRIVER PAR 44HTSSOP | 75% | View |
Submit your RFQ for IRSM515-044PA and get a quote within 24 hours.
