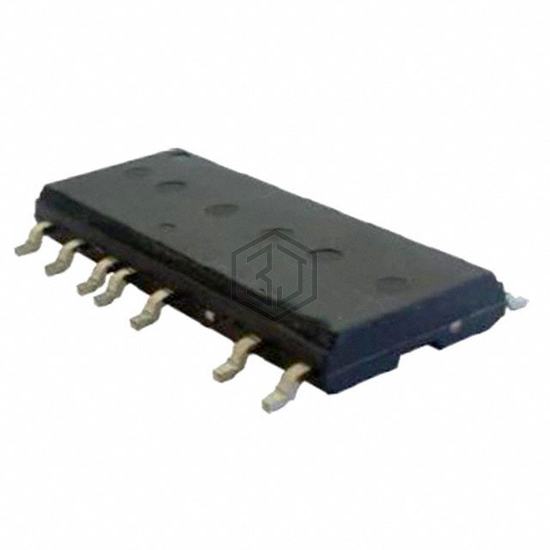

IC MOTOR DRIVER 600V 23SOP
IRSM515-035PA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 600V 23SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 32-PowerSMD Module, 23 Leads.
In Stock: 3,154
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 1.8Ohm |
| Current - Output / Channel | 2.1A |
| Current - Peak Output | 15A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 400V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 32-PowerSMD Module, 23 Leads |
| Supplier Device Package | 23-SOP |
IRSM515-035PA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRSM515-035PATR | Infineon Technologies | MICRO MCM | 100% | View |
| IRSM505-035PA | Infineon Technologies | IC MOTOR DRIVER 500V 23SOP | 100% | View |
| IRSM515-035PATRAUMA1 | Infineon Technologies | CIPOS MICRO SOP23 | 100% | View |
| IRSM505-035PAALMA1 | Infineon Technologies | CIPOS MICRO SOP23 | 100% | View |
| IRSM505-055PATR | Infineon Technologies | IC HALF-BRIDGE DRVR 3CH 23SOP | 96% | View |
| IRSM505-055PA | Infineon Technologies | IC HALF-BRIDGE DRVR 3CH 23SOP | 96% | View |
Submit your RFQ for IRSM515-035PA and get a quote within 24 hours.
