IC MOTOR DRIVER 23SOP

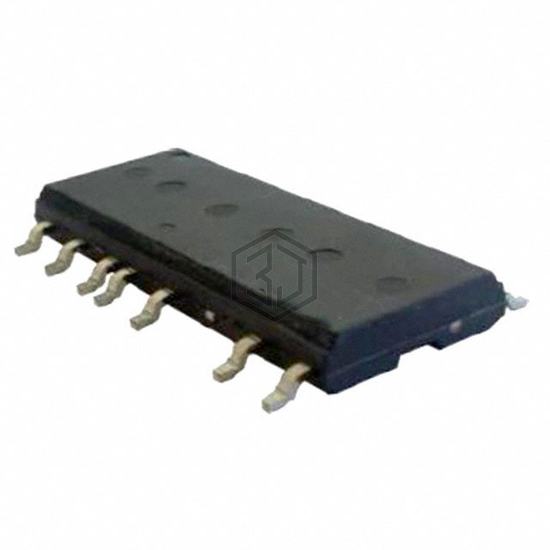

IRSM506-076PA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 23SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 32-PowerSMD Module, 23 Leads.
In Stock: 1,197
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | IGBT |
| Rds On (Typ) | - |
| Current - Output / Channel | 4A |
| Current - Peak Output | 15A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 480V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 32-PowerSMD Module, 23 Leads |
| Supplier Device Package | 23-SOP |
IRSM506-076PA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRSM516-076PA | Infineon Technologies | IC MICRO MCM DRIVER 23SOP | 100% | View |
| IRSM505-065PATR | Infineon Technologies | IC MOTOR DRIVER 500V 23SOP | 84% | View |
| DRV8312DDW | Texas Instruments | IC BRIDGE DRIVER PAR 44HTSSOP | 76% | View |
| DRV8312DDWR | Texas Instruments | IC BRIDGE DRIVER PAR 44HTSSOP | 76% | View |
| DRV8332HDDV | Texas Instruments | IC MOTOR DRIVER 44HTSSOP | 74% | View |
| IRSM836-084MA | Infineon Technologies | IC HALF-BRIDGE DRVR 3CH 36PQFN | 59% | View |
