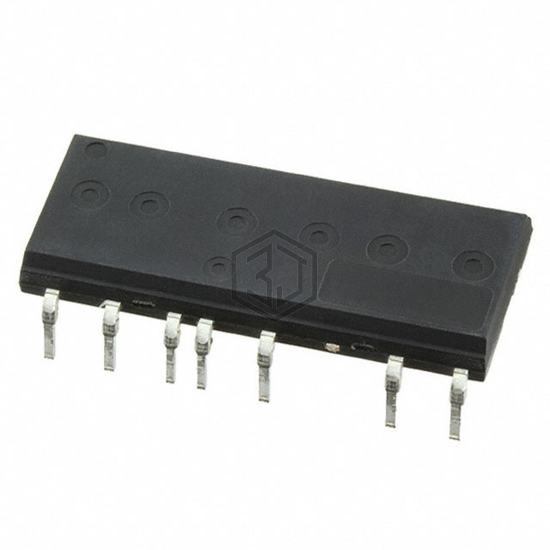

IC MICRO MCM DRIVER 23DIP
IRSM506-076DA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MICRO MCM DRIVER 23DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 32-PowerDIP Module, 23 Leads.
In Stock: 1,569
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | IGBT |
| Rds On (Typ) | - |
| Current - Output / Channel | 4A |
| Current - Peak Output | 15A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 480V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Through Hole |
| Package / Case | 32-PowerDIP Module, 23 Leads |
| Supplier Device Package | 23-DIP |
IRSM506-076DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRSM516-076DA | Infineon Technologies | IC MICRO MCM DRIVER 23DIP | 100% | View |
| IRSM516-076DA2 | Infineon Technologies | IC MICRO MCM DRIVER 23DIP | 100% | View |
| IRSM506-076DA2 | Infineon Technologies | IC MICRO MCM DRIVER 23DIP | 100% | View |
| IRSM505-084DA2 | Infineon Technologies | IC MOTOR DRIVER 600V 23DIP | 84% | View |
| IRSM515-084DA2 | Infineon Technologies | IC MOTOR DRIVER 600V 23DIP | 84% | View |
| IRSM515-044DA-INF | Infineon Technologies | AC MOTOR CONTROLLER | 79% | View |
Submit your RFQ for IRSM506-076DA and get a quote within 24 hours.
