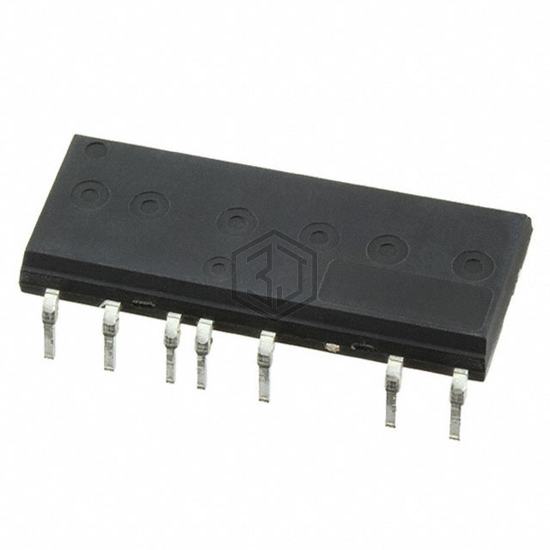

IC MOTOR DRIVER 600V 23DIP
IRSM505-084DA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 600V 23DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 23-DIP Module.
In Stock: 7,111
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 340mOhm |
| Current - Output / Channel | 4.6A |
| Current - Peak Output | 15A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 200V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Through Hole |
| Package / Case | 23-DIP Module |
| Supplier Device Package | 23-DIP |
IRSM505-084DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRSM505-084DA2 | Infineon Technologies | IC MOTOR DRIVER 600V 23DIP | 100% | View |
| IRSM515-084DA | Infineon Technologies | IC MOTOR DRIVER 600V 23DIP | 100% | View |
| IRSM515-084DA2 | Infineon Technologies | IC MOTOR DRIVER 600V 23DIP | 100% | View |
| IRSM505-084DA-IR | International Rectifier | IC HALF BRIDGE DRIVER 4.6A 23DIP | 100% | View |
| IRSM515-044DA | Infineon Technologies | IC MOTOR DRIVER 600V 23DIP | 87% | View |
| STK554U362A-E | onsemi | IC BRIDGE DRIVER PAR 29SIP | 60% | View |
Submit your RFQ for IRSM505-084DA and get a quote within 24 hours.
