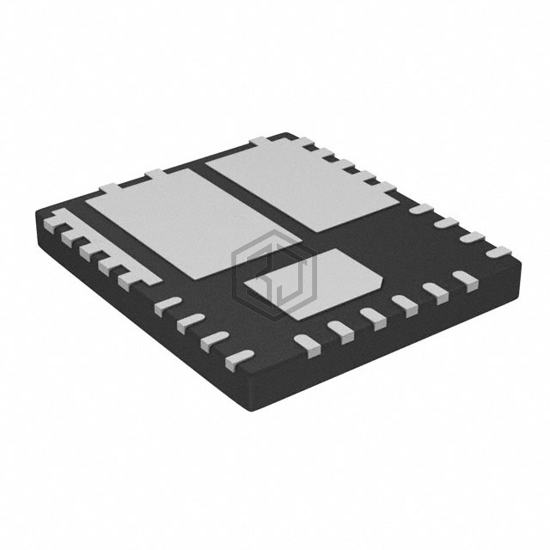

IC GATE DRIVER 100V QFN
IRSM005-301MHTR is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC GATE DRIVER 100V QFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 10V ~ 20V, package / case 27-PowerVQFN.
In Stock: 9,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | AC Motors, DC Motors, DC-DC Converters, General Purpose |
| Interface | Logic |
| Load Type | Inductive, Capacitive |
| Technology | Power MOSFET |
| Rds On (Typ) | 16mOhm |
| Current - Output / Channel | 30A |
| Current - Peak Output | - |
| Voltage - Supply | 10V ~ 20V |
| Voltage - Load | 100V (Max) |
| Operating Temperature | 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 27-PowerVQFN |
| Supplier Device Package | 27-PQFN (7x8) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SIC531CD-T1-GE3 | Vishay Siliconix | IC CTLR STAGE 30A 5V PWM PPAK ML | 57% | View |
| SIC530CD-T1-GE3 | Vishay Siliconix | IC CTLR STAGE 30A 5V PWM PPAK ML | 57% | View |
| CSD97396Q4MT | Texas Instruments | IC NEXFET SYNC BUCK 8VSON | 57% | View |
| CSD95377Q4MT | Texas Instruments | IC HALF-BRIDGE DRIVER PWM 8VSON | 57% | View |
| CSD97396Q4M | Texas Instruments | IC NEXFET SYNC BUCK 8VSON | 57% | View |
| CSD97374Q4M | Texas Instruments | IC SYNC BUCK NEXFET 8VSON | 50% | View |
Submit your RFQ for IRSM005-301MHTR and get a quote within 24 hours.
