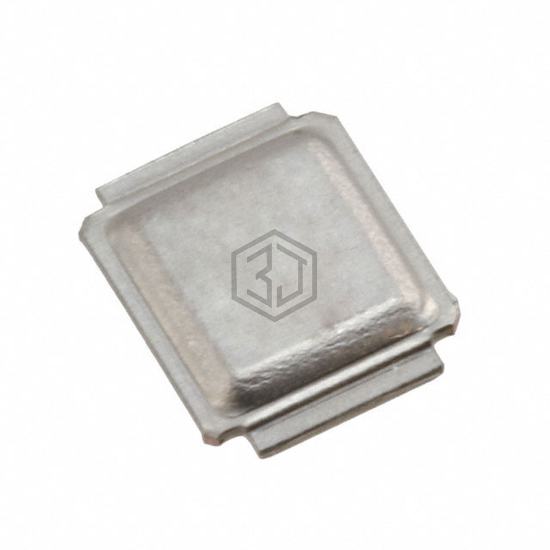

MOSFET 2N-CH 20V 15A DIRECTFET
IRL6297SDTRPBF is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 20V 15A DIRECTFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case DirectFET™ Isometric SA, power - max 1.7W.
In Stock: 4,775
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 15A |
| Rds On (Max) @ Id, Vgs | 4.9mOhm @ 15A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 35µA |
| Gate Charge (Qg) (Max) @ Vgs | 54nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2245pF @ 10V |
| Power - Max | 1.7W |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DirectFET™ Isometric SA |
| Supplier Device Package | DIRECTFET™ SA |
Submit your RFQ for IRL6297SDTRPBF and get a quote within 24 hours.
