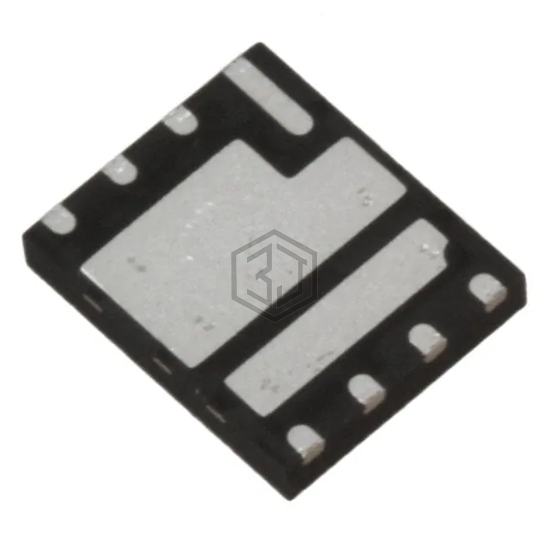

MOSFET 2N-CH 25V 64A/145A PQFN
IRFH4253DTRPBF is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 25V 64A/145A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN, power - max 31W, 50W.
In Stock: 6,574
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 64A, 145A |
| Rds On (Max) @ Id, Vgs | 3.2mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 35µA |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1314pF @ 13V |
| Power - Max | 31W, 50W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Supplier Device Package | PQFN (5x6) |
Submit your RFQ for IRFH4253DTRPBF and get a quote within 24 hours.
