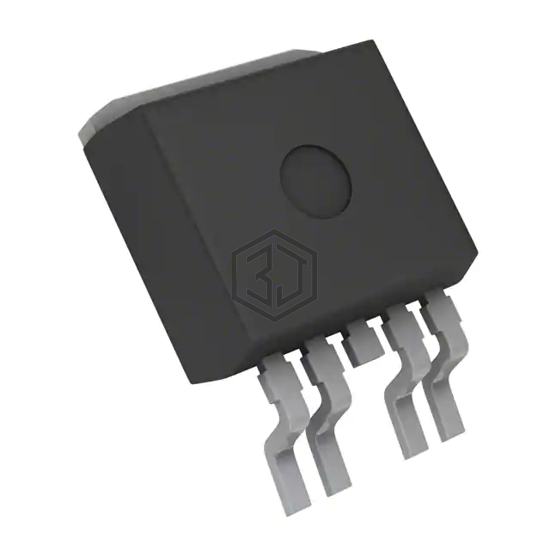

IC PWR DRIVER N-CHAN 1:1 D2PAK
IR6220S is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR DRIVER N-CHAN 1:1 D2PAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case TO-263-5, D²Pak (4 Leads + Tab), TO-263BB.
In Stock: 6,594
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5V ~ 35V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 10A |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2Pak (SMD-220 5-Lead) |
| Package / Case | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB |
IR6220S is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BTS70081EPAXUMA1 | Infineon Technologies | IC PWR SWTCH N-CHAN 1:1 TSDSO-14 | 97% | View |
| BTS500801TMCATMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO220-7 | 96% | View |
| AUIPS7111STRL | Infineon Technologies | IC PWR DRIVER N-CHAN 1:1 TO263-5 | 92% | View |
| BV1HAC45EFJ-CE2 | Rohm Semiconductor | 40V BREAKDOWN VOLTAGE VARIABLE O | 92% | View |
| VND830ETR-E | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 16SO | 84% | View |
| VND830E-E | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 16SO | 84% | View |
Submit your RFQ for IR6220S and get a quote within 24 hours.
