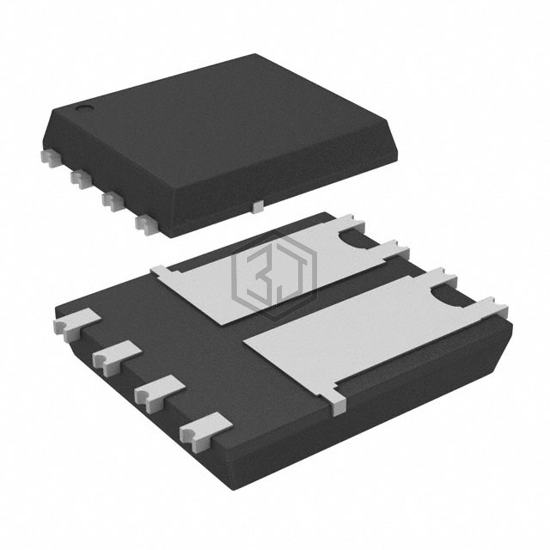

MOSFET 2N-CH 100V 20A TDSON-8
IPG20N10S4L22AATMA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 100V 20A TDSON-8. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, power - max 60W.
In Stock: 3,271
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 20A |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 27nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1755pF @ 25V |
| Power - Max | 60W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 8-PowerVDFN |
| Supplier Device Package | PG-TDSON-8-10 |
Submit your RFQ for IPG20N10S4L22AATMA1 and get a quote within 24 hours.
