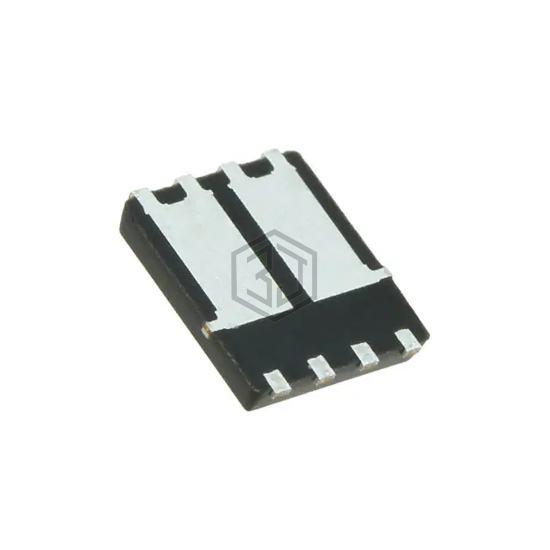

MOSFET 2N-CH 40V 20A 8TDSON
IPG20N04S4L11ATMA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 40V 20A 8TDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, power - max 41W.
In Stock: 2,191
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 20A |
| Rds On (Max) @ Id, Vgs | 11.6mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 15µA |
| Gate Charge (Qg) (Max) @ Vgs | 26nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1990pF @ 25V |
| Power - Max | 41W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Supplier Device Package | PG-TDSON-8-4 |
Submit your RFQ for IPG20N04S4L11ATMA1 and get a quote within 24 hours.
