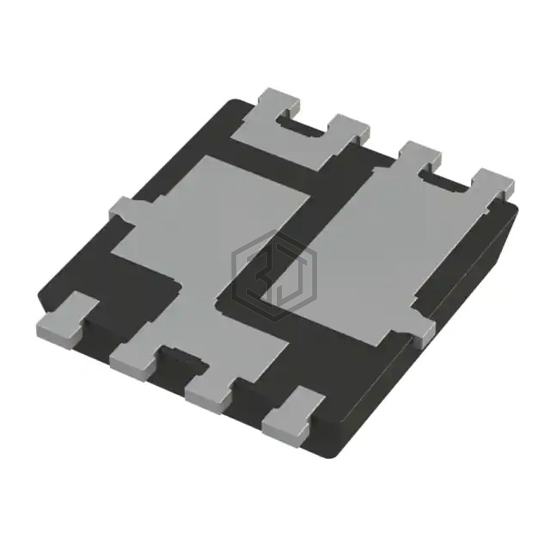

IAUC45N04S6N070HATMA1
IAUC45N04S6N070HATMA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. IAUC45N04S6N070HATMA1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, power - max 41W (Tc).
In Stock: 8,615
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 45A (Tj) |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 9µA |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 701pF @ 25V |
| Power - Max | 41W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Supplier Device Package | PG-TDSON-8-57 |
Submit your RFQ for IAUC45N04S6N070HATMA1 and get a quote within 24 hours.
