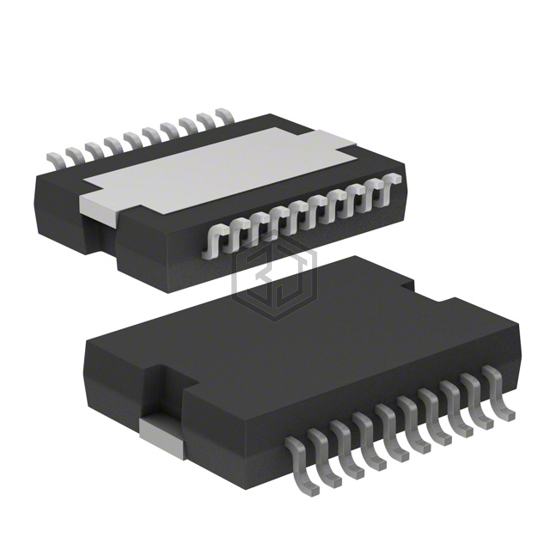

IC PWR SWITCH N-CHAN 1:1 DSO-20
BTS840S2 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR SWITCH N-CHAN 1:1 DSO-20. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 20-PowerSOIC (0.433", 11.00mm Width).
In Stock: 2,361
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5V ~ 34V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 11A |
| Rds On (Typ) | 27mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-DSO-20-12 |
| Package / Case | 20-PowerSOIC (0.433", 11.00mm Width) |
BTS840S2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPD166029T1J-E1-AY | Renesas Electronics Corporation | POWER:INTELLGENT POWER DEVICES | 98% | View |
| BTS500402SFAXUMA2 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-36 | 97% | View |
| VND5050AJTR-E | STMicroelectronics | IC PWR DRVR N-CHAN 1:1 PWRSSO12 | 95% | View |
| BTS50081EKBXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-14 | 88% | View |
| BTS640S2GATMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO263-7 | 86% | View |
| BTS70081EPPXUMA1 | Infineon Technologies | IC PWR SWTCH N-CHAN 1:1 TSDSO-14 | 84% | View |
