IC PWR SWITCH N-CHAN 1:1 DSO-20

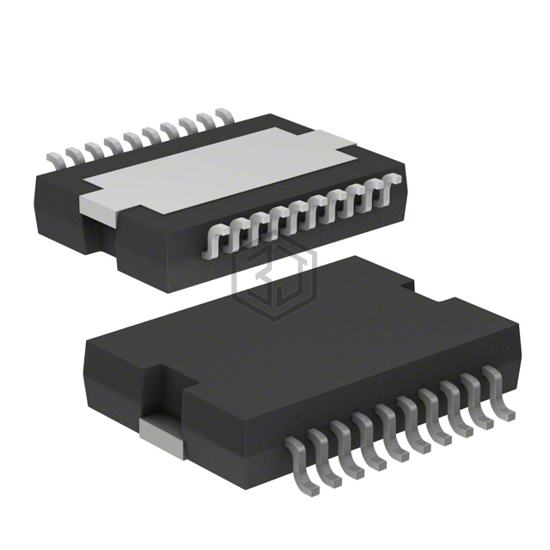

BTS824R is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR SWITCH N-CHAN 1:1 DSO-20. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 20-PowerSOIC (0.433", 11.00mm Width).
In Stock: 5,436
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5.5V ~ 40V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3.7A |
| Rds On (Typ) | 70mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-DSO-20-12 |
| Package / Case | 20-PowerSOIC (0.433", 11.00mm Width) |
BTS824R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VNQ810P-E | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 28SO | 98% | View |
| VNQ5160KTR-E | STMicroelectronics | IC PWR DRVR N-CHAN 1:1 PWRSSO24 | 95% | View |
| BTS5215LAUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-12 | 88% | View |
| MC33XS2410EL | NXP USA Inc. | HIGH-SIDE SWITCH 60V HTSSOP28 | 88% | View |
| VND810PTR-E | STMicroelectronics | IC PWR SWITCH N-CHANNEL 1:1 16SO | 86% | View |
| BTS726L1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 PDSO-20 | 85% | View |
