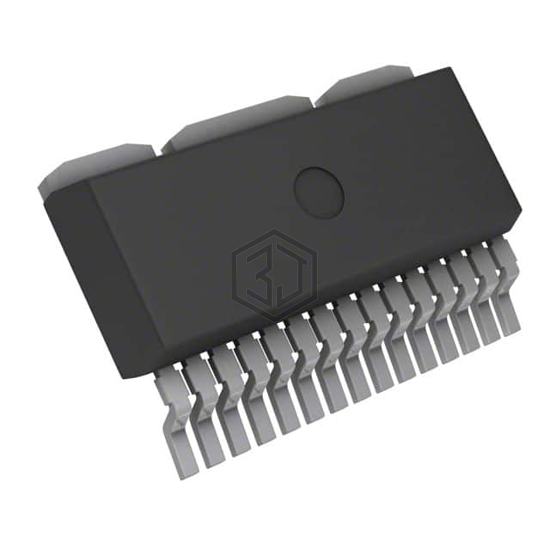

IC BRIDGE DRIVER PAR TO263-15
BTS7810KNTMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC BRIDGE DRIVER PAR TO263-15. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 1.8V ~ 42V, package / case TO-263-18 (15 Leads + 3 Tabs).
In Stock: 7,732
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | DMOS |
| Rds On (Typ) | 14mOhm LS, 26mOhm HS |
| Current - Output / Channel | - |
| Current - Peak Output | 42A |
| Voltage - Supply | 1.8V ~ 42V |
| Voltage - Load | 1.8V ~ 42V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-18 (15 Leads + 3 Tabs) |
| Supplier Device Package | PG-TO263-15-1 |
Submit your RFQ for BTS7810KNTMA1 and get a quote within 24 hours.
