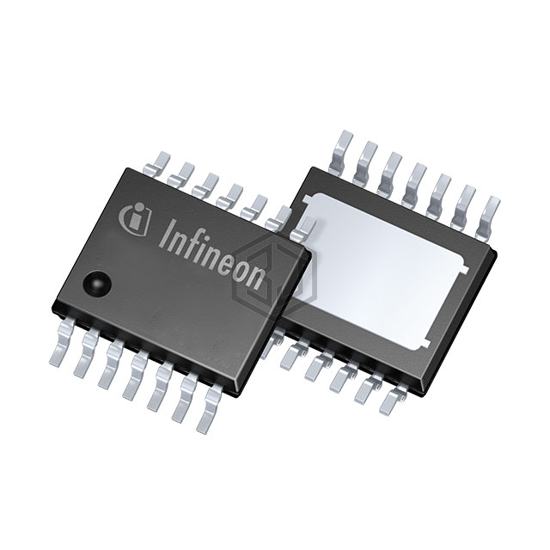

IC PWR SWTCH N-CHAN 1:1 TSDSO-14
BTS70402EPAXUMA1 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR SWTCH N-CHAN 1:1 TSDSO-14. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 7,185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 6V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3.5A |
| Rds On (Typ) | 19mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TSDSO-14-22 |
| Package / Case | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VND810PTR-E | STMicroelectronics | IC PWR SWITCH N-CHANNEL 1:1 16SO | 98% | View |
| VND810 | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 16SO | 98% | View |
| ZXMS82090S14PQ-13 | Diodes Incorporated | HIGH SIDE INTELLIFET SO-14EP T&R | 97% | View |
| BTS726L1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 PDSO-20 | 96% | View |
| VND5160JTR-65-E | STMicroelectronics | IC PWR DRVR N-CHAN 1:1 PWRSSO12 | 95% | View |
| BTS52352LAUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-12 | 95% | View |
Submit your RFQ for BTS70402EPAXUMA1 and get a quote within 24 hours.
