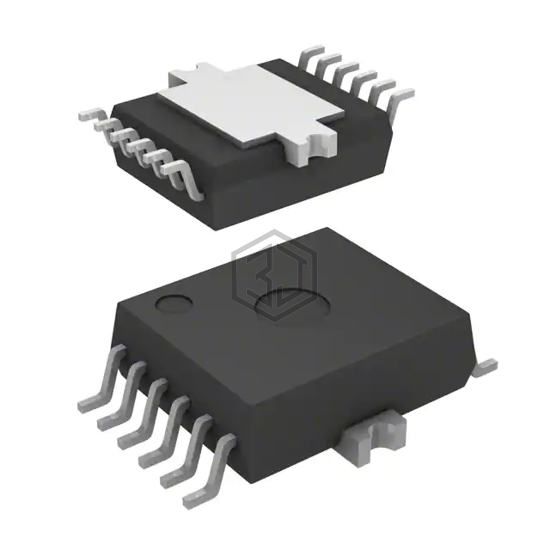

IC PWR SWITCH N-CHAN 1:1 DSO-12
BTS52422LAUMA1 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR SWITCH N-CHAN 1:1 DSO-12. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 12-BSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 5,683
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 5.5A |
| Rds On (Typ) | 19mOhm |
| Input Type | Non-Inverting |
| Features | Auto Restart, Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-DSO-12-9 |
| Package / Case | 12-BSOP (0.295", 7.50mm Width) Exposed Pad |
BTS52422LAUMA1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BTS5240LNT | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-12 | 100% | View |
| BTS5241GNUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 PDSO-20 | 100% | View |
| BTS5240LAUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-12 | 100% | View |
| BTS5016SDAAUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO252-5 | 84% | View |
| VNQ810PEPTR-E | STMicroelectronics | IC PWR DRVR N-CHAN 1:1 PWRSSO24 | 80% | View |
| BTS50301EJAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-8 | 74% | View |
Submit your RFQ for BTS52422LAUMA1 and get a quote within 24 hours.
