MOSFET N/P-CH 8-SOIC

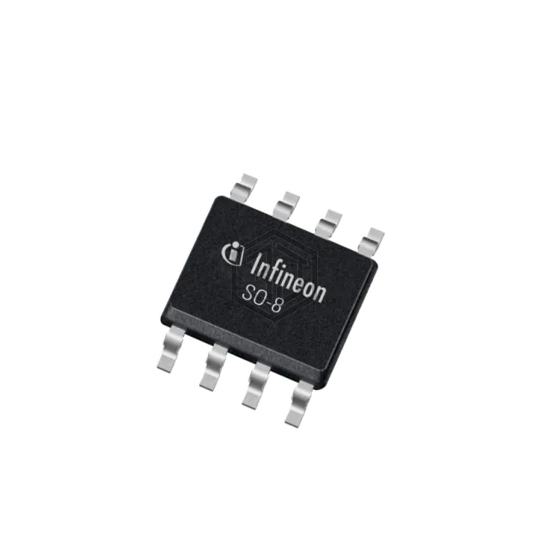

BSO615CGXUMA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET N/P-CH 8-SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 2W (Ta).
In Stock: 7,011
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 3.1A (Ta), 2A (Ta) |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 3.1A, 10V, 300mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 20µA, 2V @ 450µA |
| Gate Charge (Qg) (Max) @ Vgs | 22.5nC @ 10V, 20nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 380pF @ 25V, 460pF @ 25V |
| Power - Max | 2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | PG-DSO-8 |
Submit your RFQ for BSO615CGXUMA1 and get a quote within 24 hours.
