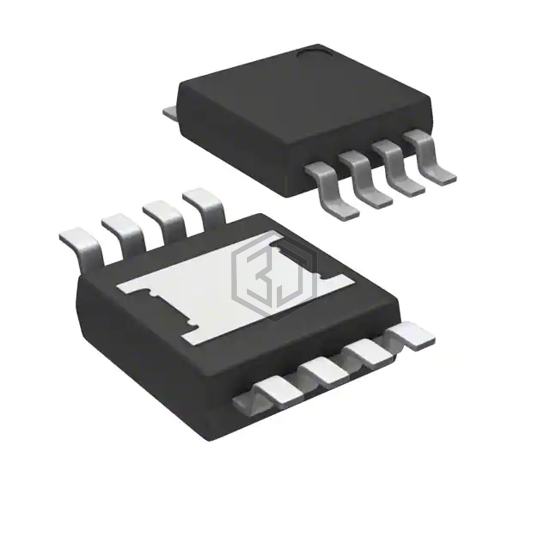

IC GATE DRVR LOW-SIDE 8TSSOP
2EDN8524RXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR LOW-SIDE 8TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 20V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 86,150
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | 1.2V, 1.9V |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 5.3ns, 4.5ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | PG-TSSOP-8 |
2EDN8524RXUMA1 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2EDN7523GXTMA1 | Infineon Technologies | IC GATE DRVR LOW-SIDE 8WSON | 100% | View |
| 2EDN8523GXTMA1 | Infineon Technologies | IC GATE DRVR LOW-SIDE 8WSON | 99% | View |
| 2EDN8524GXTMA1 | Infineon Technologies | IC GATE DRVR LOW-SIDE 8WSON | 99% | View |
| 2EDN7523RXTMA1 | Infineon Technologies | DRIVER IC PG-TSSOP-8 | 99% | View |
| 2EDN8524RXTMA1 | Infineon Technologies | DRIVER IC PG-TSSOP-8 | 99% | View |
| 2EDN7524RXTMA1 | Infineon Technologies | DRIVER IC PG-TSSOP-8 | 99% | View |
Submit your RFQ for 2EDN8524RXUMA1 and get a quote within 24 hours.
