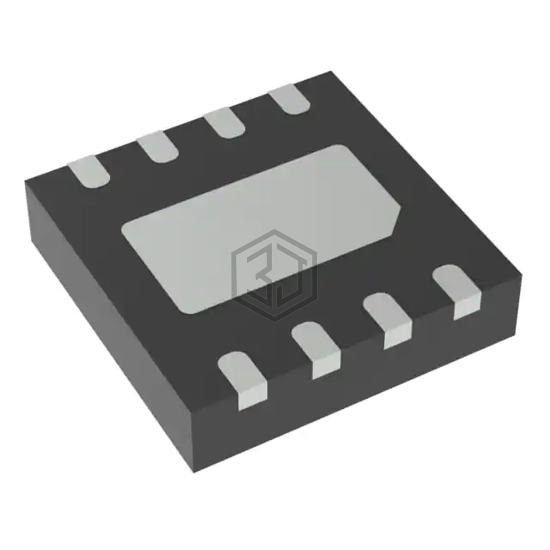

IC GATE DRVR LOW-SIDE 8WSON
2EDN8524GXTMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR LOW-SIDE 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 20V, package / case 8-WDFN Exposed Pad.
In Stock: 2,410
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | 1.1V, 1.98V |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 5.3ns, 4.5ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | PG-WSON-8-1 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2EDN7523GXTMA1 | Infineon Technologies | IC GATE DRVR LOW-SIDE 8WSON | 100% | View |
| 2EDN8523GXTMA1 | Infineon Technologies | IC GATE DRVR LOW-SIDE 8WSON | 100% | View |
| 2EDN8523RXTMA1 | Infineon Technologies | DRIVER IC PG-TSSOP-8 | 100% | View |
| 2EDN7523RXTMA1 | Infineon Technologies | DRIVER IC PG-TSSOP-8 | 100% | View |
| 2EDN8524RXTMA1 | Infineon Technologies | DRIVER IC PG-TSSOP-8 | 100% | View |
| 2EDN7524RXTMA1 | Infineon Technologies | DRIVER IC PG-TSSOP-8 | 100% | View |
Submit your RFQ for 2EDN8524GXTMA1 and get a quote within 24 hours.
