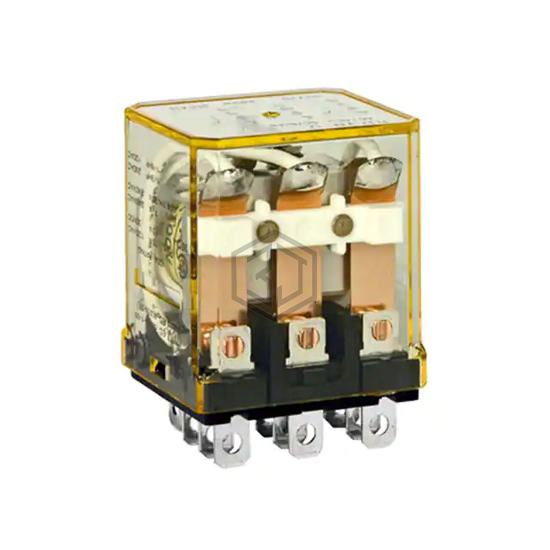

RELAY GEN PURPOSE 3PDT 10A 12V
RH3B-UDC12V is a Power Relays, Over 2 Amps manufactured by IDEC. RELAY GEN PURPOSE 3PDT 10A 12V. Key specifications: mounting type Socketable, operating temperature -25°C ~ 70°C, contact material Silver Cadmium Oxide (AgCdO), termination style Plug In, Quick Connect - 0.187" (4.7mm).
In Stock: 29
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 120VAC, 30VDC - Max |
| Coil Current | 240 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for RH3B-UDC12V and get a quote within 24 hours.
