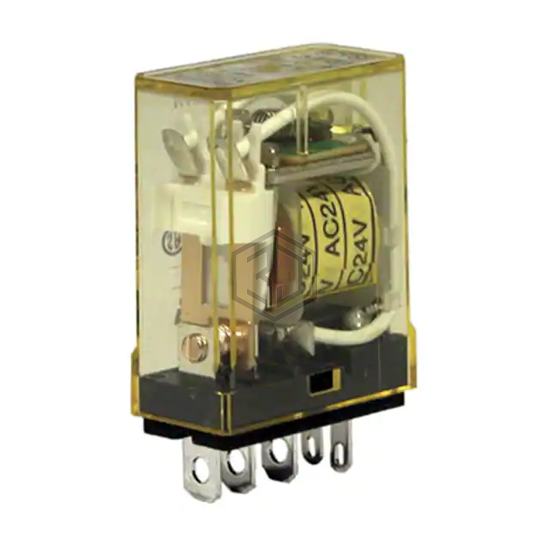

RELAY GEN PURPOSE SPDT 10A 24V
RH1B-ULCAC24V is a Power Relays, Over 2 Amps manufactured by IDEC. RELAY GEN PURPOSE SPDT 10A 24V. Key specifications: mounting type Socketable, operating temperature -25°C ~ 70°C, contact material Silver Cadmium Oxide (AgCdO), termination style Plug In, Quick Connect - 0.187" (4.7mm).
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC, 30VDC - Max |
| Coil Current | 37 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Test Button |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 19.2 VAC |
| Must Release Voltage | 7.2 VAC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for RH1B-ULCAC24V and get a quote within 24 hours.
