CABLINE-VS II RECEPTACLE 20P

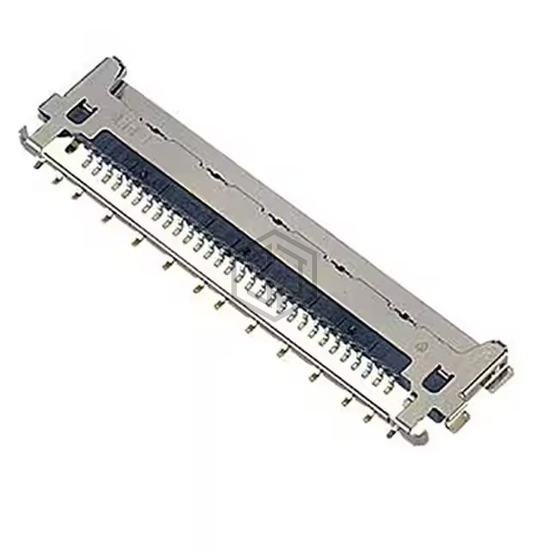

20849-020E-01 is a FFC, FPC (Flat Flexible) Connectors manufactured by I-PEX. CABLINE-VS II RECEPTACLE 20P. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 100V, housing material Liquid Crystal Polymer (LCP).
In Stock: 4,775
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 20 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | - |
| Height Above Board | 0.032" (0.81mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | - |
| Features | EMI Shielded, Solder Retention |
| Voltage Rating | 100V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 20849-020E-01 and get a quote within 24 hours.
