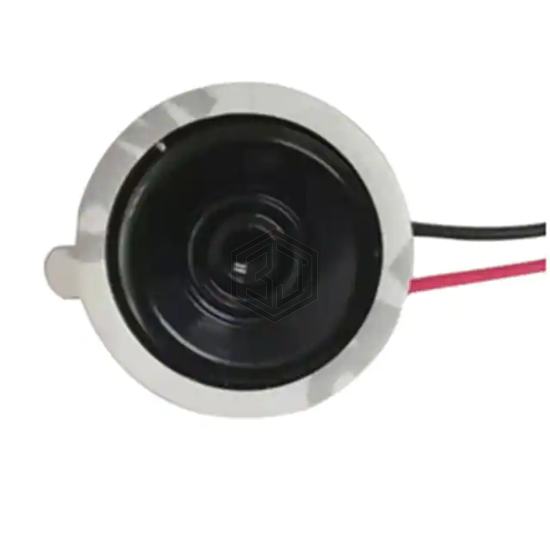

SPEAKER 4 OHM 0.7W 500HZ-10KHZ 9
NS28M-04005-L80-02 is a Speakers manufactured by Huizhou N Acoustics Co., Ltd. SPEAKER 4 OHM 0.7W 500HZ-10KHZ 9. Key specifications: size / dimension 1.102" Dia (28.00mm), termination Solder Pads, power - max 700 mW, frequency range 500 Hz ~ 10 kHz.
In Stock: 2,100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 500 Hz ~ 10 kHz |
| Frequency - Self Resonant | 700Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 700 mW |
| Port Location | - |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.102" Dia (28.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
Submit your RFQ for NS28M-04005-L80-02 and get a quote within 24 hours.
