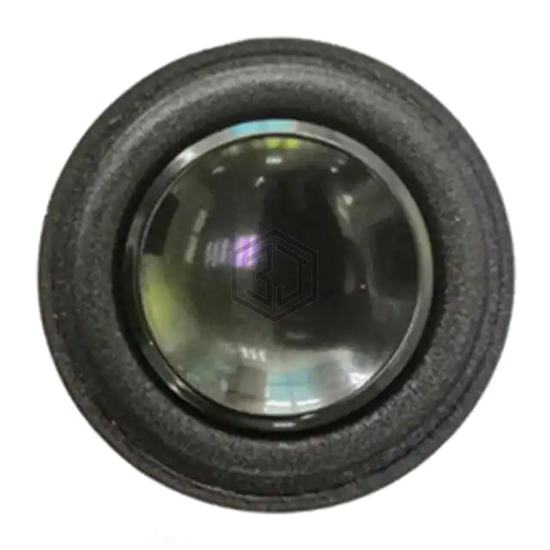

NS28D-0402-07 - Huizhou N Acoustics Co., Ltd - Speakers

NS28D-0402-07

Huizhou N Acoustics Co., Ltd

SPEAKER 4 OHM 3W 400HZ-20KHZ 91D

NS28D-0402-07 is a Speakers manufactured by Huizhou N Acoustics Co., Ltd. SPEAKER 4 OHM 3W 400HZ-20KHZ 91D. Key specifications: size / dimension 1.102" Dia (28.00mm), termination Solder Pads, power - max 3 W, frequency range 400 Hz ~ 20 kHz.

In Stock: 838

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range400 Hz ~ 20 kHz
Frequency - Self Resonant450Hz
Impedance4 Ohms
Efficiency - dBA91.00
Efficiency - Testing-
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated2 W
Power - Max3 W
Port Location-
ShapeRound
Material - ConeFoam
Material - MagnetNd-Fe-B
Ingress Protection-
Ratings-
TerminationSolder Pads
Size / Dimension1.102" Dia (28.00mm)
Height - Seated (Max)0.406" (10.30mm)

Frequently Asked Questions

NS28D-0402-07 is a Speakers manufactured by Huizhou N Acoustics Co., Ltd. SPEAKER 4 OHM 3W 400HZ-20KHZ 91D

The size of NS28D-0402-07 is 1.102" Dia (28.00mm).

The termination type of NS28D-0402-07 is Solder Pads.

The power rating of NS28D-0402-07 is 3 W.

The resistance of NS28D-0402-07 is 4 Ohms.
