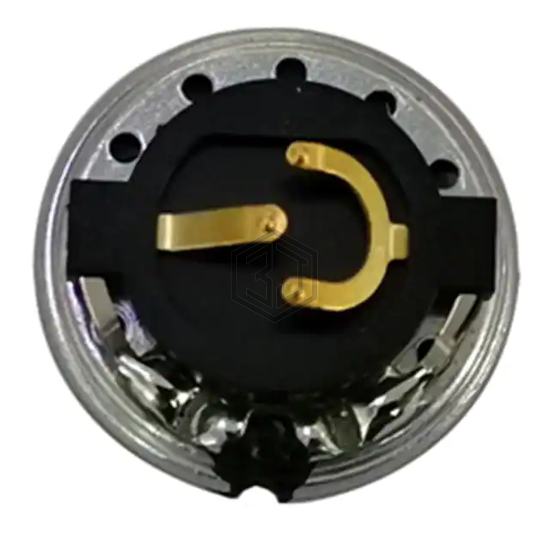

SPEAKER 32 OHM 0.5W 1200HZ-10KHZ
NS15M32003-01 is a Speakers manufactured by Huizhou N Acoustics Co., Ltd. SPEAKER 32 OHM 0.5W 1200HZ-10KHZ. Key specifications: size / dimension 0.591" Dia (15.00mm), termination Solder Pads, power - max 500 mW, frequency range 1.2 Hz ~ 10 kHz.
In Stock: 10,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1.2 Hz ~ 10 kHz |
| Frequency - Self Resonant | 1400Hz |
| Impedance | 32 Ohms |
| Efficiency - dBA | 86.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 300 mW |
| Power - Max | 500 mW |
| Port Location | - |
| Shape | Round |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.591" Dia (15.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for NS15M32003-01 and get a quote within 24 hours.
