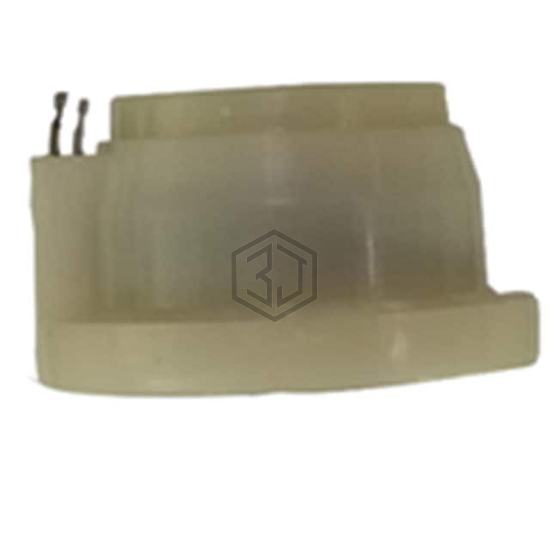

RECEIVER 36 OHM 20MW 100HZ-5KHZ
NR3836-01W-06 is a Speakers manufactured by Huizhou N Acoustics Co., Ltd. RECEIVER 36 OHM 20MW 100HZ-5KHZ. Key specifications: size / dimension 1.496" Dia (38.00mm), termination PC Pins, power - max 20 mW, frequency range 100 Hz ~ 5 kHz.
In Stock: 32,064
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Receiver |
| Frequency Range | 100 Hz ~ 5 kHz |
| Frequency - Self Resonant | - |
| Impedance | 36 Ohms |
| Efficiency - dBA | 104.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 10 mW |
| Power - Max | 20 mW |
| Port Location | - |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Iron Oxide |
| Ingress Protection | - |
| Ratings | - |
| Termination | PC Pins |
| Size / Dimension | 1.496" Dia (38.00mm) |
| Height - Seated (Max) | 0.835" (21.20mm) |
Submit your RFQ for NR3836-01W-06 and get a quote within 24 hours.
