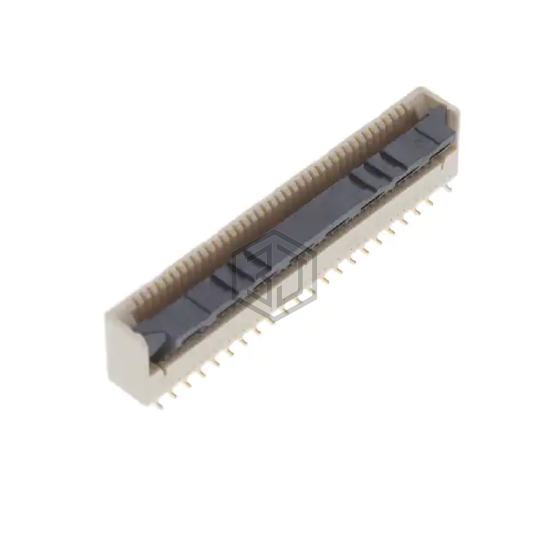

CONN FFC 40POS 0.50MM SMD
TF38-40S-0.5SV(830) is a FFC, FPC (Flat Flexible) Connectors manufactured by Hirose Electric Co Ltd. CONN FFC 40POS 0.50MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP).
In Stock: 2,754
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 40 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.205" (5.20mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tabbed |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for TF38-40S-0.5SV(830) and get a quote within 24 hours.
