CONN FPC 0.25MM SMD R/A 7POS

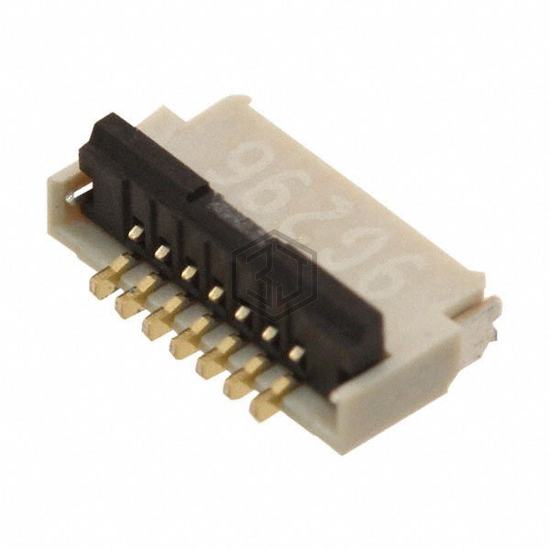

FH53M-7S-0.25SHW(99) is a FFC, FPC (Flat Flexible) Connectors manufactured by Hirose Electric Co Ltd. CONN FPC 0.25MM SMD R/A 7POS. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 85°C, voltage rating 30V, housing material Liquid Crystal Polymer (LCP).
In Stock: 74
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 7 |
| Pitch | 0.010" (0.25mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.12mm |
| Height Above Board | 0.026" (0.65mm) |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Notched |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyamide (PA), Nylon |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 30V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0, UL94 HB |
