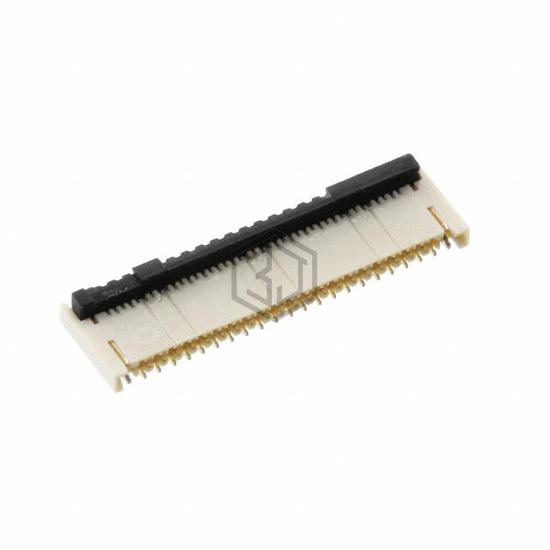

CONN FPC 41POS 0.2MM SMD
FH53-41S-0.2SHW(99) is a FFC, FPC (Flat Flexible) Connectors manufactured by Hirose Electric Co Ltd. CONN FPC 41POS 0.2MM SMD. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 85°C, housing material Liquid Crystal Polymer (LCP), Halogen Free, termination Solder.
In Stock: 357
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 41 |
| Pitch | 0.008" (0.20mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.12mm |
| Height Above Board | 0.026" (0.65mm) |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Notched |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Polyamide (PA), Nylon, Halogen Free |
| Features | - |
| Voltage Rating | - |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0, UL94 HB |
Submit your RFQ for FH53-41S-0.2SHW(99) and get a quote within 24 hours.
