0.5 MM PITCH, 2 MM HEIGHT, 12.6M

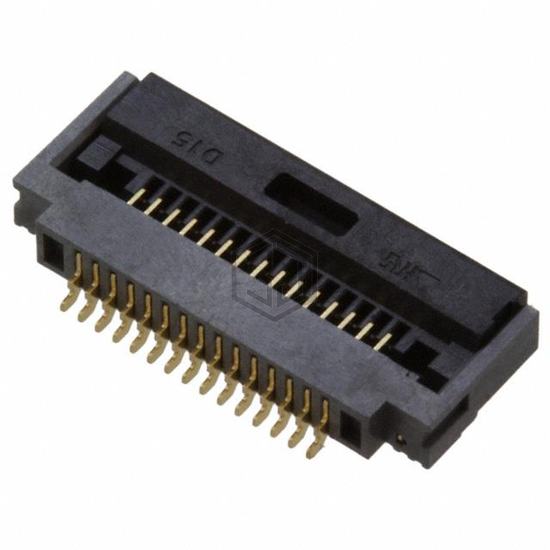

FH52K-15S-0.5SH is a FFC, FPC (Flat Flexible) Connectors manufactured by Hirose Electric Co Ltd. 0.5 MM PITCH, 2 MM HEIGHT, 12.6M. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 125°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP).
In Stock: 5,280
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 15 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tabbed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Features | Solder Retention |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for FH52K-15S-0.5SH and get a quote within 24 hours.
