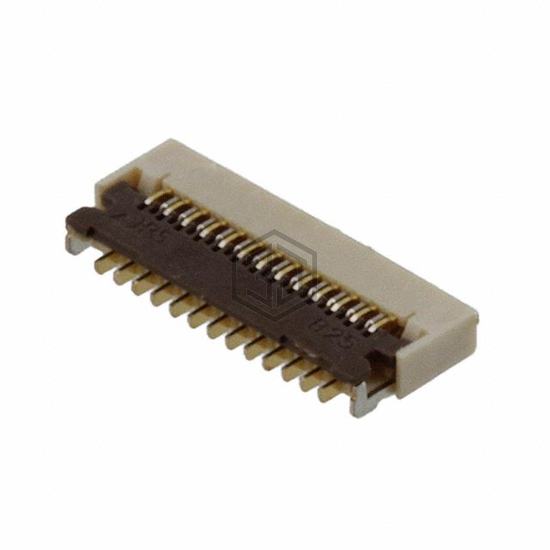

CONN FPC BOTTOM 25POS 0.20MM R/A
FH43B-25S-0.2SHW(99) is a FFC, FPC (Flat Flexible) Connectors manufactured by Hirose Electric Co Ltd. CONN FPC BOTTOM 25POS 0.20MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 85°C, voltage rating 30V, housing material Liquid Crystal Polymer (LCP).
In Stock: 524
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 25 |
| Pitch | 0.008" (0.20mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.035" (0.88mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tabbed |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyamide (PA), Nylon |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 30V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for FH43B-25S-0.2SHW(99) and get a quote within 24 hours.
