CONN FFC BOTTOM 65POS 0.40MM R/A

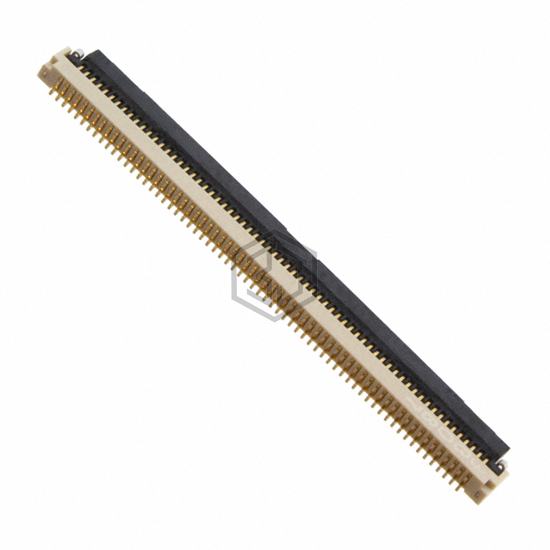

FH33MHJ-65S-0.4SH(10) is a FFC, FPC (Flat Flexible) Connectors manufactured by Hirose Electric Co Ltd. CONN FFC BOTTOM 65POS 0.40MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 85°C, voltage rating 40V, housing material Liquid Crystal Polymer (LCP).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 65 |
| Pitch | 0.016" (0.40mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.047" (1.20mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 40V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | - |
Submit your RFQ for FH33MHJ-65S-0.4SH(10) and get a quote within 24 hours.
