CONN FPC BOTTOM 90POS 0.30MM R/A

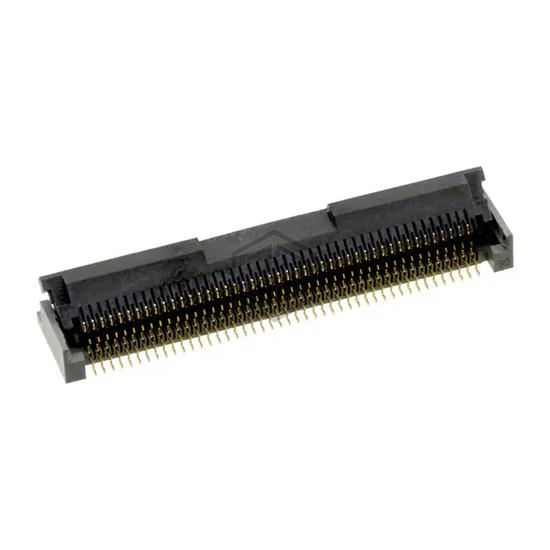

FH30-90S-0.3SHW(98) is a FFC, FPC (Flat Flexible) Connectors manufactured by Hirose Electric Co Ltd. CONN FPC BOTTOM 90POS 0.30MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 85°C, housing material Liquid Crystal Polymer (LCP), Halogen Free, termination Solder.
In Stock: 89
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 90 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.118" (3.00mm) |
| Locking Feature | Rotary Lock |
| Cable End Type | Tabbed |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | - |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | - |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for FH30-90S-0.3SHW(98) and get a quote within 24 hours.
