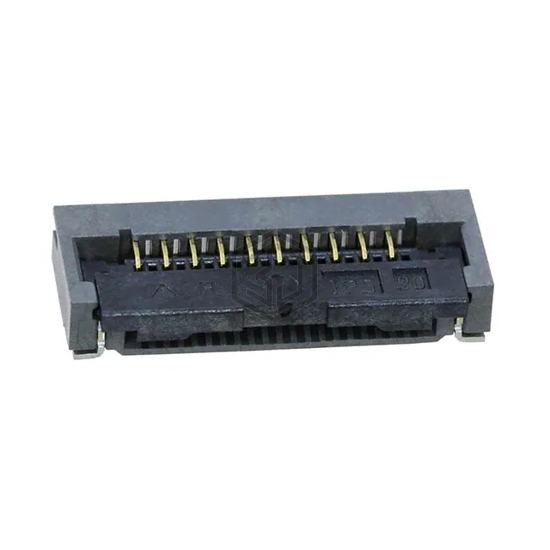

CONN FFC BOTTOM 20POS 1.00MM R/A
FH28D-20(10)SB-1SH(98) is a FFC, FPC (Flat Flexible) Connectors manufactured by Hirose Electric Co Ltd. CONN FFC BOTTOM 20POS 1.00MM R/A. Key specifications: mounting type Surface Mount, Right Angle, housing material Liquid Crystal Polymer (LCP), Halogen Free, termination Solder, number of positions 20 (10 Loaded).
In Stock: 7,000
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 20 (10 Loaded) |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.100" (2.54mm) |
| Locking Feature | Rotary Lock |
| Cable End Type | Tabbed |
| Contact Material | - |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | - |
| Features | - |
| Voltage Rating | - |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for FH28D-20(10)SB-1SH(98) and get a quote within 24 hours.
