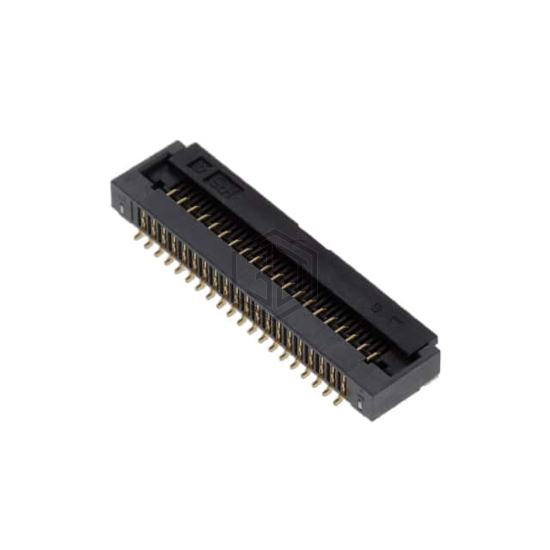

CONN FPC BOTTOM 40POS 1.00MM R/A
FH28-40(20)SB-1SH(05) is a FFC, FPC (Flat Flexible) Connectors manufactured by Hirose Electric Co Ltd. CONN FPC BOTTOM 40POS 1.00MM R/A. Key specifications: mounting type Surface Mount, Right Angle, housing material Liquid Crystal Polymer (LCP), Halogen Free, termination Solder, number of positions 40 (20 Loaded).
In Stock: 603
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 40 (20 Loaded) |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.100" (2.54mm) |
| Locking Feature | Rotary Lock |
| Cable End Type | Tabbed |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Features | - |
| Voltage Rating | - |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for FH28-40(20)SB-1SH(05) and get a quote within 24 hours.
