CONN PIN RCPT .023-.033 SOLDER

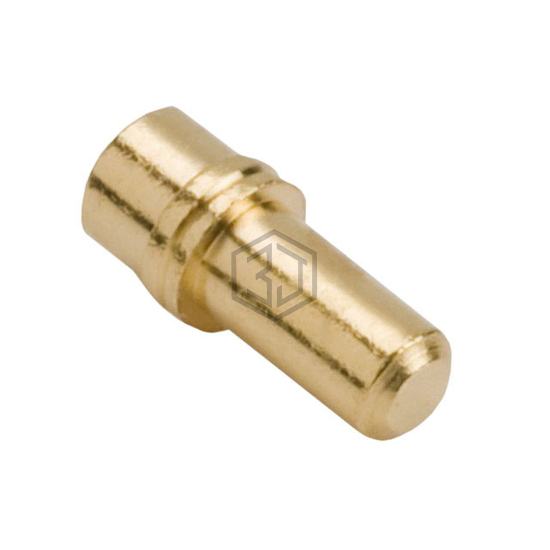

H8505-05 is a Terminals - PC Pin Receptacles, Socket Connectors manufactured by Harwin Inc.. CONN PIN RCPT .023-.033 SOLDER. Key specifications: contact material Beryllium Copper, termination Solder.
In Stock: 4,764
| Attribute | Value |
|---|---|
| Product Status | Active |
| Tail Type | No Tail |
| Termination | Solder |
| Length - Overall | 0.232" (5.89mm) |
| Accepts Pin Diameter | 0.024" ~ 0.033" (0.60mm ~ 0.85mm) |
| Accepts Square Pin Size | - |
| Pin Hole Diameter | - |
| Mounting Hole Diameter | 0.075" ~ 0.079" (1.91mm ~ 2.01mm) |
| Flange Diameter | 0.105" (2.67mm) |
| Tail Diameter | - |
| Socket Depth | 0.183" (4.65mm) |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 5.90µin (0.150µm) |
Submit your RFQ for H8505-05 and get a quote within 24 hours.
