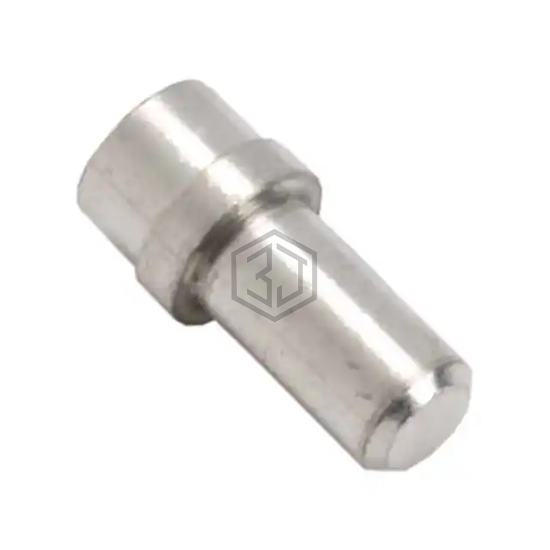

H3182-46
PCB SOCKET
H3182-46 is a Terminals - PC Pin Receptacles, Socket Connectors manufactured by Harwin Inc.. PCB SOCKET. Key specifications: contact material Beryllium Copper, termination Solder.
In Stock: 3,589
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Tail Type | No Tail |
| Termination | Solder |
| Length - Overall | 0.222" (5.65mm) |
| Accepts Pin Diameter | 0.035" ~ 0.041" (0.89mm ~ 1.05mm) |
| Accepts Square Pin Size | - |
| Pin Hole Diameter | - |
| Mounting Hole Diameter | 0.075" ~ 0.079" (1.91mm ~ 2.01mm) |
| Flange Diameter | 0.105" (2.67mm) |
| Tail Diameter | - |
| Socket Depth | 0.187" (4.75mm) |
| Contact Material | Beryllium Copper |
| Contact Finish | Tin |
| Contact Finish Thickness | 157.5µin (4.00µm) |
Frequently Asked Questions
H3182-46 is a Terminals - PC Pin Receptacles, Socket Connectors manufactured by Harwin Inc.. PCB SOCKET
The material of H3182-46 is Beryllium Copper.
The termination type of H3182-46 is Solder.
