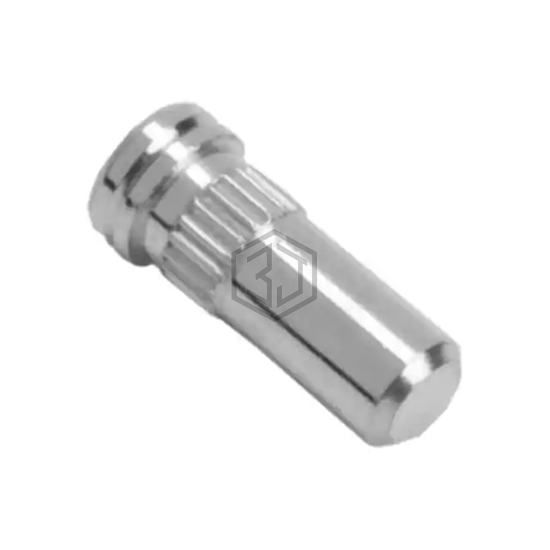

H8501-46
PCB SOCKET
H8501-46 is a Terminals - PC Pin Receptacles, Socket Connectors manufactured by Harwin Inc.. PCB SOCKET. Key specifications: contact material Beryllium Copper, termination Press-Fit, Knurled.
In Stock: 2,622
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Tail Type | No Tail |
| Termination | Press-Fit, Knurled |
| Length - Overall | 0.224" (5.69mm) |
| Accepts Pin Diameter | 0.024" ~ 0.033" (0.60mm ~ 0.85mm) |
| Accepts Square Pin Size | - |
| Pin Hole Diameter | - |
| Mounting Hole Diameter | 0.075" ~ 0.077" (1.91mm ~ 1.96mm) |
| Flange Diameter | 0.093" (2.36mm) |
| Tail Diameter | - |
| Socket Depth | 0.183" (4.65mm) |
| Contact Material | Beryllium Copper |
| Contact Finish | Tin |
| Contact Finish Thickness | 157.5µin (4.00µm) |
Frequently Asked Questions
H8501-46 is a Terminals - PC Pin Receptacles, Socket Connectors manufactured by Harwin Inc.. PCB SOCKET
The material of H8501-46 is Beryllium Copper.
The termination type of H8501-46 is Press-Fit, Knurled.
