80V/2.5A PEAK, HIGH FREQUENCY FU

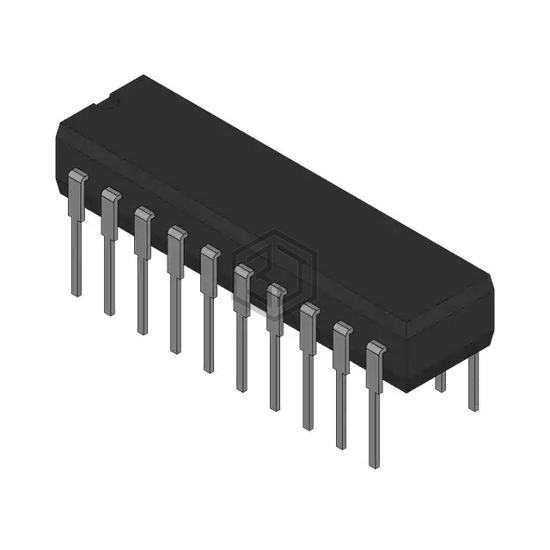

HIP4081IP is a PMIC - Gate Drivers manufactured by Harris Corporation. 80V/2.5A PEAK, HIGH FREQUENCY FU. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply 6V ~ 15V, package / case 20-DIP (0.300", 7.62mm).
In Stock: 5,252
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Full-Bridge |
| Channel Type | Independent |
| Number of Drivers | 4 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 6V ~ 15V |
| Logic Voltage - VIL, VIH | 0.8V, 2.7V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 95 V |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HIP4081AIP | Harris Corporation | FULL BRIDGE BASED MOSFET DRIVER, | 93% | View |
| HIP4081AIPZ | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 20DIP | 93% | View |
| IR4426PBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8DIP | 85% | View |
| IR4427PBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8DIP | 85% | View |
| IRS4427PBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8DIP | 79% | View |
| TC4424VPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 75% | View |
Submit your RFQ for HIP4081IP and get a quote within 24 hours.
