FULL BRIDGE BASED MOSFET DRIVER,

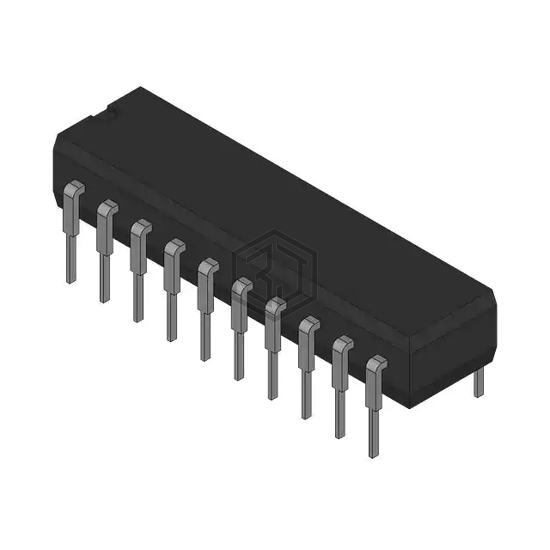

HIP4081AIP is a PMIC - Gate Drivers manufactured by Harris Corporation. FULL BRIDGE BASED MOSFET DRIVER,. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9.5V ~ 15V, package / case 20-DIP (0.300", 7.62mm).
In Stock: 9,069
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 4 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9.5V ~ 15V |
| Logic Voltage - VIL, VIH | 1V, 2.5V |
| Current - Peak Output (Source, Sink) | 2.6A, 2.4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 95 V |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HIP4081AIPZ | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 20DIP | 100% | View |
| IR4426PBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8DIP | 76% | View |
| IR4427PBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8DIP | 76% | View |
| IRS4427PBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8DIP | 70% | View |
| TC4424VPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 67% | View |
| MCP14E11-E/P | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 66% | View |
Submit your RFQ for HIP4081AIP and get a quote within 24 hours.
