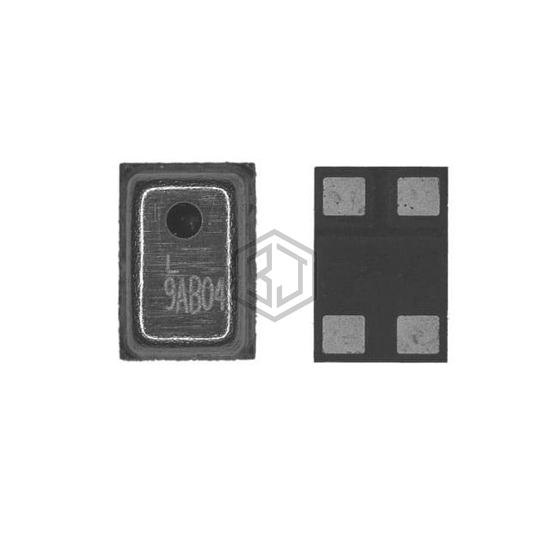

TP ANALOG MEMS MIC 2.75X1.85
MA-FFA421-A10-4 is a Microphones manufactured by Gettop Acoustics. TP ANALOG MEMS MIC 2.75X1.85. Key specifications: voltage - rated 2 V, current - supply 200 µA, size / dimension 0.108" L x 0.073" W (2.75mm x 1.85mm), termination Solder Pads.
In Stock: 6,982
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 10 kHz |
| Sensitivity | -42dB ±1dB @ 94dB SPL |
| S/N Ratio | 59dB |
| Impedance | 400 Ohms |
| Voltage - Rated | 2 V |
| Voltage Range | 1.6 V ~ 3.6 V |
| Current - Supply | 200 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.108" L x 0.073" W (2.75mm x 1.85mm) |
| Height (Max) | 0.039" (1.00mm) |
| Shape | Rectangular |
Submit your RFQ for MA-FFA421-A10-4 and get a quote within 24 hours.
