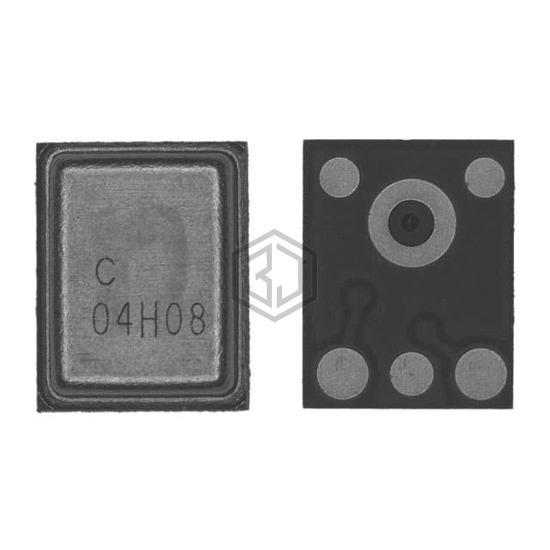

BP ANALOG MEMS MIC 3.76X2.95
MA-BRA381-A11-4 is a Microphones manufactured by Gettop Acoustics. BP ANALOG MEMS MIC 3.76X2.95. Key specifications: voltage - rated 2 V, current - supply 200 µA, size / dimension 0.148" L x 0.116" W (3.76mm x 2.95mm), termination Solder Pads.
In Stock: 7,802
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 10 kHz |
| Sensitivity | -38dB ±1dB @ 94dB SPL |
| S/N Ratio | 64dB |
| Impedance | 400 Ohms |
| Voltage - Rated | 2 V |
| Voltage Range | 1.6 V ~ 3.6 V |
| Current - Supply | 200 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.148" L x 0.116" W (3.76mm x 2.95mm) |
| Height (Max) | 0.047" (1.20mm) |
| Shape | Rectangular |
Submit your RFQ for MA-BRA381-A11-4 and get a quote within 24 hours.
