30W, 1MM FFC CON, VERT, H5.5MM,

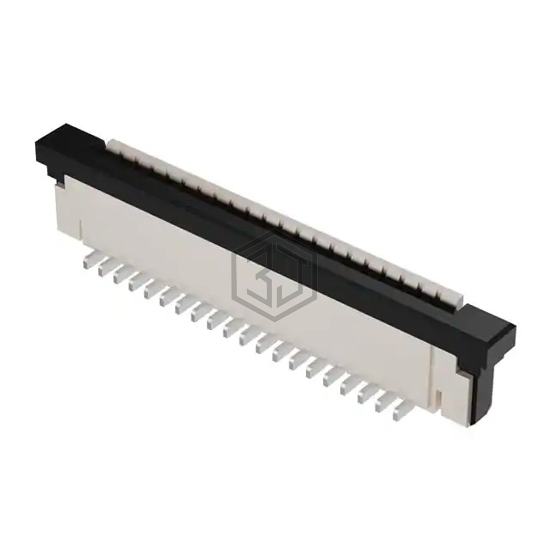

FFC3A20-30-G is a FFC, FPC (Flat Flexible) Connectors manufactured by GCT. 30W, 1MM FFC CON, VERT, H5.5MM,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage rating 125V, housing material Liquid Crystal Polymer (LCP).
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 30 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.217" (5.50mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Pick and Place Cap, Zero Insertion Force (ZIF) |
| Voltage Rating | 125V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for FFC3A20-30-G and get a quote within 24 hours.
