12W,0.5MM FFC CON,R/A,DUAL CONT,

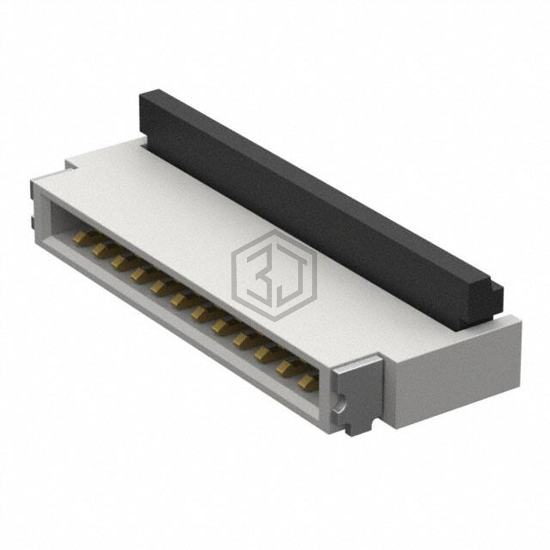

FFC2B28-12-G is a FFC, FPC (Flat Flexible) Connectors manufactured by GCT. 12W,0.5MM FFC CON,R/A,DUAL CONT,. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -25°C ~ 85°C, voltage rating 30V, housing material Thermoplastic.
In Stock: 4,068
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 12 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.039" (1.00mm) |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| Features | Solder Retention |
| Voltage Rating | 30V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for FFC2B28-12-G and get a quote within 24 hours.
