54W,0.5MM FFC CON,R/A,BOT CONT,S

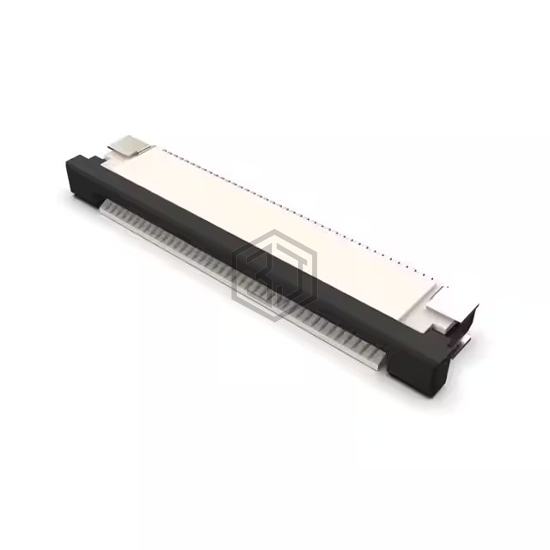

FFC2B22-54-T is a FFC, FPC (Flat Flexible) Connectors manufactured by GCT. 54W,0.5MM FFC CON,R/A,BOT CONT,S. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -25°C ~ 85°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP).
In Stock: 1,291
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 54 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.098" (2.50mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Features | Solder Retention |
| Voltage Rating | 50V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for FFC2B22-54-T and get a quote within 24 hours.
