BUFFER/INVERTER BASED PERIPHERAL

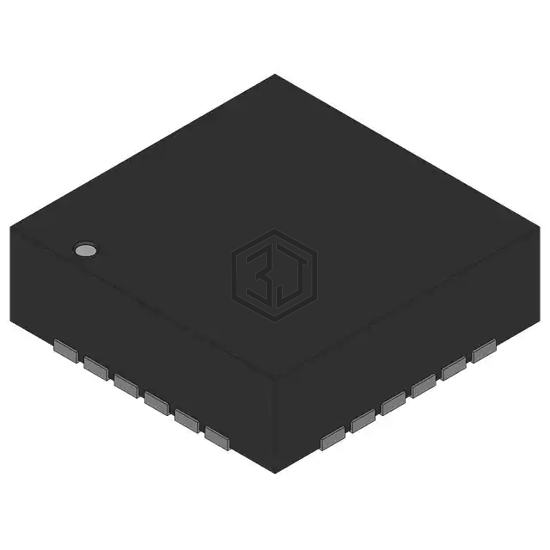

MC15XS3400DHFKR2 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Freescale Semiconductor. BUFFER/INVERTER BASED PERIPHERAL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 24-PowerQFN.
In Stock: 6,477
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 6V ~ 20V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 6A |
| Rds On (Typ) | 15mOhm |
| Input Type | - |
| Features | Internal PWM, Slew Rate Controlled, Watchdog Timer |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-PQFN (12x12) |
| Package / Case | 24-PowerQFN |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC15XS3400DPNA | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 24PQFN | 100% | View |
| MC15XS3400CHFK | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 24PQFN | 100% | View |
| VND830SPTR-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 86% | View |
| VND830AEP-E | STMicroelectronics | IC PWR DRVR N-CHAN 1:1 PWRSSO24 | 86% | View |
| VN750SMPTR-E | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 8SO | 74% | View |
| VN750B5TR-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 P2PAK | 74% | View |
Submit your RFQ for MC15XS3400DHFKR2 and get a quote within 24 hours.
