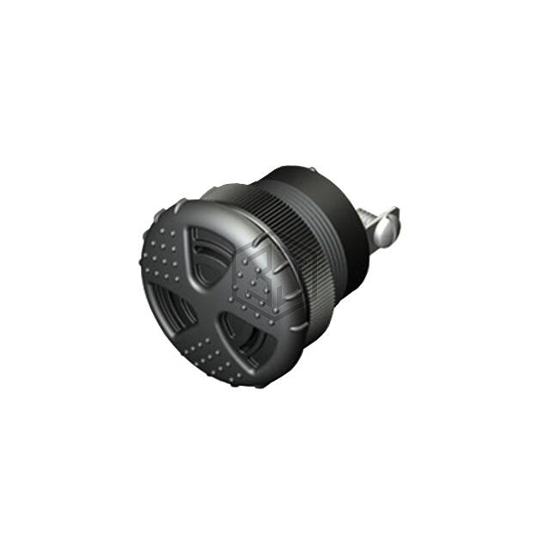

BUZZER PIEZO 35.81MM PNL MNT
TXS-V86-515-S is a Alarms, Buzzers, and Sirens manufactured by Floyd Bell Inc. BUZZER PIEZO 35.81MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 65°C, current - supply 10 ~ 50mA, size / dimension 1.410" Dia (35.81mm).
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 5 ~ 15V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Siren |
| Duration | - |
| Sound Pressure Level (SPL) | 103dB @ 15V, 61cm |
| Current - Supply | 10 ~ 50mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 65°C |
| Approval Agency | UL, UR |
| Ratings | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
| Size / Dimension | 1.410" Dia (35.81mm) |
| Height - Seated (Max) | 1.250" (31.75mm) |
