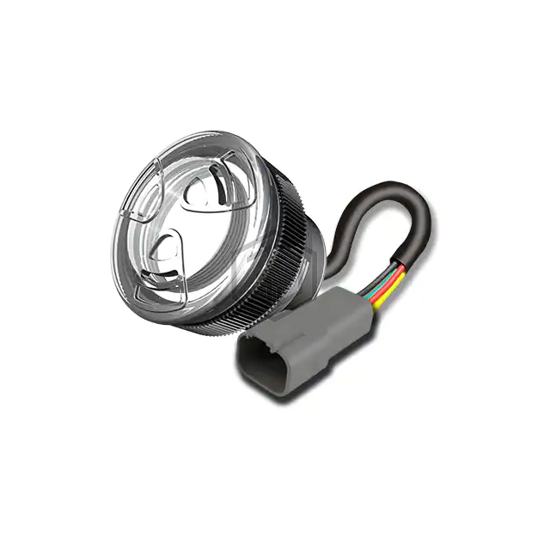

BUZZER PIEZO 47.1MM PNL MNT
TCAN98W930H is a Alarms, Buzzers, and Sirens manufactured by Floyd Bell Inc. BUZZER PIEZO 47.1MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 65°C, current - supply 30 ~ 50mA, size / dimension 1.854" Dia (47.10mm).
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 9 ~ 30V |
| Frequency | 1.8kHz |
| Technology | Piezo |
| Operating Mode | Multiple Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 108dB @ 30V, 61cm |
| Current - Supply | 30 ~ 50mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 65°C |
| Approval Agency | UL |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Wire Leads |
| Size / Dimension | 1.854" Dia (47.10mm) |
| Height - Seated (Max) | 1.516" (38.50mm) |
Submit your RFQ for TCAN98W930H and get a quote within 24 hours.
